Realme C11 2020 LCD Screen, Battery and Charging Flex
The Realme C11 2020 is a 6.5-inch smartphone with an HD+ 1600 × 720 display and a 5000mAh battery. The phone uses a Micro-USB charging connection and was released with Android 10 and the MediaTek Helio G35 platform.
For phone repair technicians, three commonly searched replacement parts are the LCD screen, battery and charging flex. Identifying the correct part is important before starting a repair, especially when several smartphone models use compatible replacement components.
Realme C11 2020
Realme C11 2020 LCD Screen
The Realme C11 2020 uses a 6.5-inch HD+ display with 1600 × 720 resolution.
A damaged LCD can cause different display problems, including a completely black screen, broken image, lines across the display, flickering, poor brightness or touch-related problems.
Before replacing the screen, technicians should check the display connector, LCD flex and motherboard connector. If possible, the replacement LCD should be tested before final installation.
Common Realme C11 2020 LCD Problems
- Broken or cracked display
- Black screen
- No image
- Display lines
- Flickering screen
- Damaged LCD flex
- Touchscreen not responding
- Ghost touch
- Display connector damage
A screen problem does not always mean that the LCD itself is defective. A damaged connector, flex or motherboard circuit can produce similar symptoms, so testing is recommended before replacing the part.

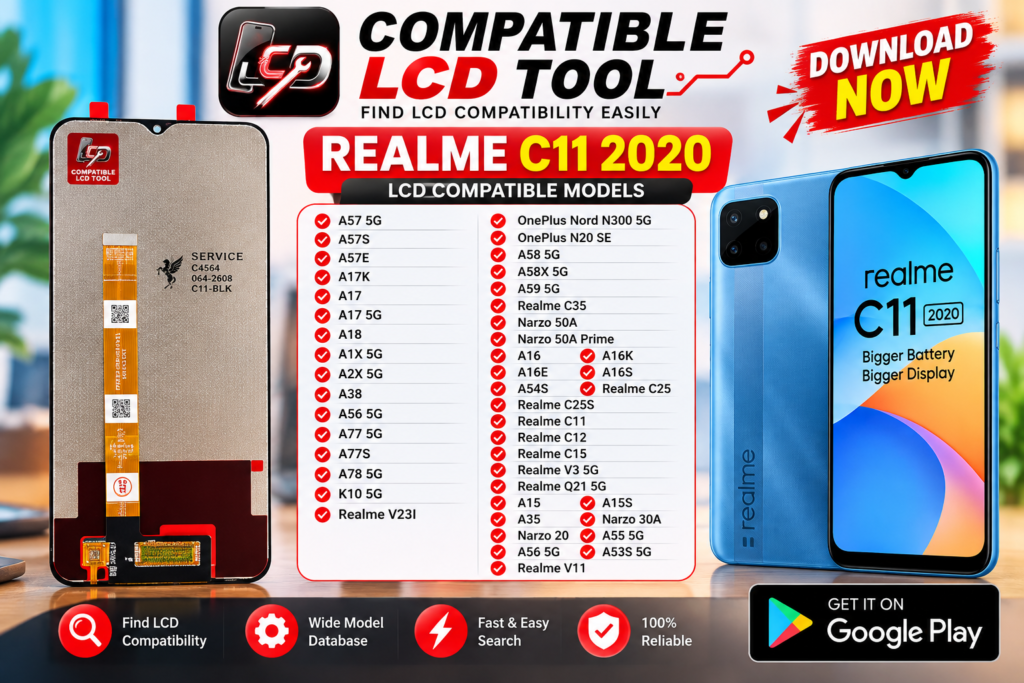

Realme C11 2020 COMPATIBLE

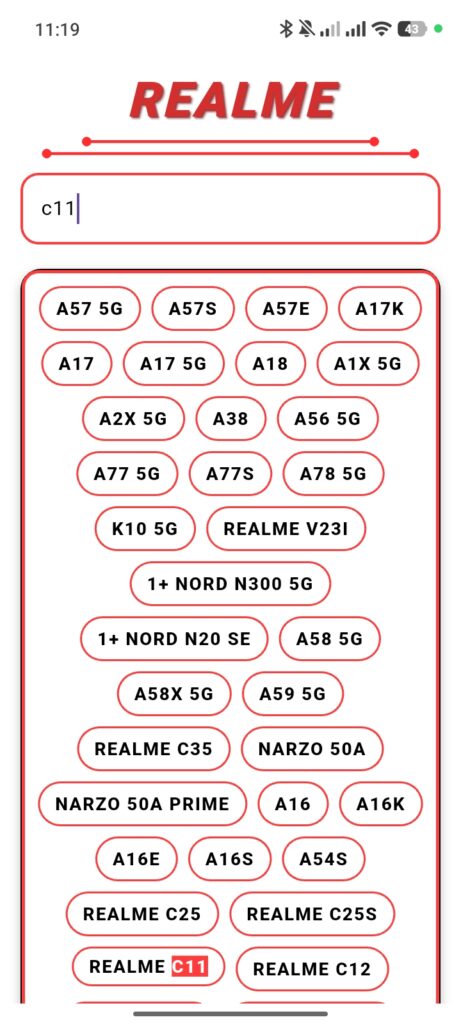

Realme C11 2020 LCD Compatible Models
According to the compatibility data shown in the provided reference images, this LCD is listed for the following models:
A57 5G / A57S / A57E / A17K / A17 / A17 5G / A18 / A1X 5G / A2X 5G / A38 / A56 5G / A77 5G / A77S / A78 5G / K10 5G / Realme V23I / OnePlus Nord N300 5G / OnePlus N20 SE / A58 5G / A58X 5G / A59 5G / Realme C35 / Narzo 50A / Narzo 50A Prime / A16 / A16K / A16E / A16S / A54S / Realme C25 / Realme C25S / Realme C11 / Realme C12 / Realme C15 / Realme V3 5G / Realme Q21 5G / A15 / A15S / A35 / Narzo 30A / Narzo 20 / A55 5G / A56 5G / A53S 5G / Realme V11
Compatibility note: This list is reproduced from the compatibility images supplied for this product. Always test the LCD and verify the connector/version before installation.
REALME C11 2020 — LCD COMPATIBLE MODELS — Compatible LCD Tool
How to Check Realme C11 2020 LCD Compatibility
Before installing a replacement LCD, technicians should compare:
- The LCD connector.
- The flex design.
- The position of the connector.
- The physical size and shape of the LCD.
- The original part against the replacement part.
- The listed compatible models.
The safest procedure is to test the display before applying adhesive or closing the phone.
Realme C11 2020 Battery
The Realme C11 2020 has a 5000mAh typical battery capacity according to Realme’s specifications. The official specifications also list a 5V/2A charger and Micro-USB connection.
A battery replacement may be necessary when the original battery has significantly reduced capacity, shuts the phone down unexpectedly, becomes swollen, or cannot hold a normal charge.
Common Battery Problems
- Battery drains quickly
- Phone shuts down unexpectedly
- Battery percentage drops suddenly
- Phone does not hold charge
- Battery swelling
- Excessive battery heating
- Phone only works correctly while connected to a charger
A swollen or physically damaged lithium-ion battery should not be reused.

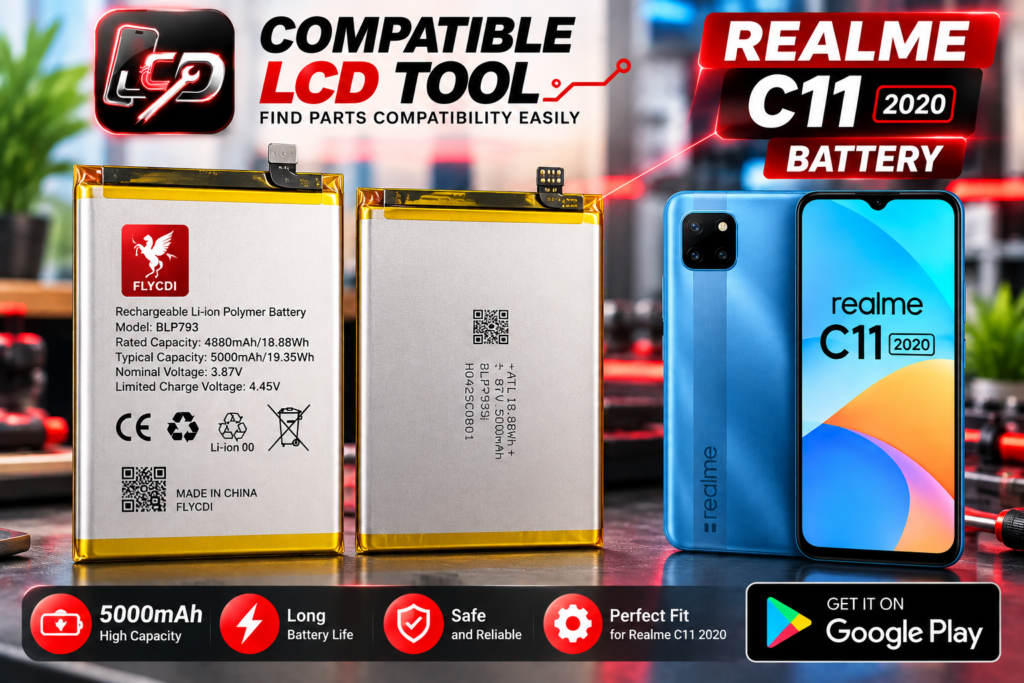

Realme C11 2020 replacement battery
ا
Battery Identification
Some spare-parts listings identify a Realme battery as BLP793 for the C11 2020 and related models. This identification should be matched against the physical battery and supplier specification before installation rather than assumed solely from the phone model.

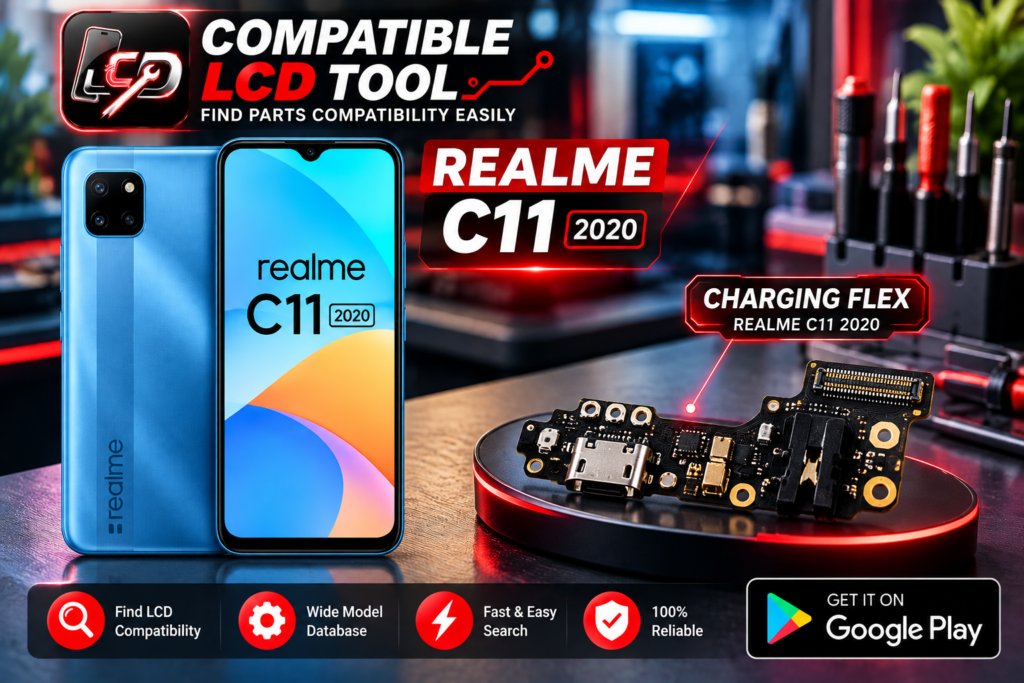

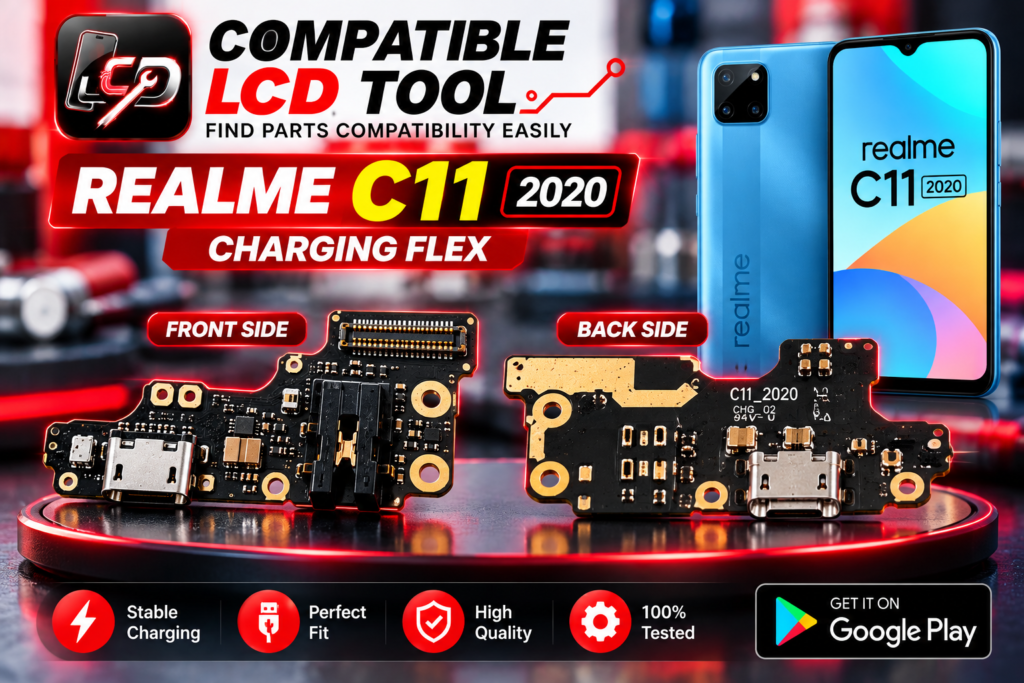

Realme C11 2020 Charging Flex
The charging flex / charging board is another important replacement part for the Realme C11 2020.
The phone uses Micro-USB, and replacement-parts listings identify a dedicated charging flex/PCB for the Realme C11 2020.
The charging assembly can be associated with charging, USB data connection and other components depending on the specific board design.
Common Charging Flex Problems
A damaged charging flex may cause:
- Phone not charging
- Charging only at certain angles
- Intermittent charging
- USB connection problems
- Loose charging port
- Charging disconnecting repeatedly
- Damaged charging connector
Before replacing the charging flex, technicians should also check the charging cable, charger, charging port, battery connector and motherboard-side connection.
LCD Flex and Connector
The LCD flex is one of the most important parts to inspect when installing a replacement display.
Realme C11 2020 Repair Checklist
Before completing a repair, check:
- LCD image
- Touch response
- LCD brightness
- Display colors
- Flex connection
- Connector condition
- Charging function
- USB connection
- Battery charging
- Battery percentage
- Phone restart/shutdown behavior
Testing these functions before closing the device can help identify problems before final assembly.
Frequently Asked Questions
What size is the Realme C11 2020 screen?
The Realme C11 2020 has a 6.5-inch display with 1600 × 720 HD+ resolution.
What battery capacity does the Realme C11 2020 have?
The official Realme specifications list a 5000mAh typical battery.
Does the Realme C11 2020 use USB-C?
No. The Realme C11 2020 uses Micro-USB.
How do I check whether an LCD is compatible?
Compare the LCD connector, flex design, physical dimensions and compatibility list, then test the LCD before final installation.
Can I use the Compatible LCD Tool to find LCD compatibility?
Yes. The Compatible LCD Tool is designed to help phone repair technicians search compatibility information quickly.
